Specification
Fluid Air, Vaccum
Pressure Range 0~1.0 MP(0~150 PSI)
Negative Pressure -750mmHg (-750Torr) -29.5 ln Hg
Max Pressure 1.5 Mpa 250PSI
Temperature Range 0~60℃ 32~140F
Applicable Tube PU (Polyurethane) PA (Nylon)
Features

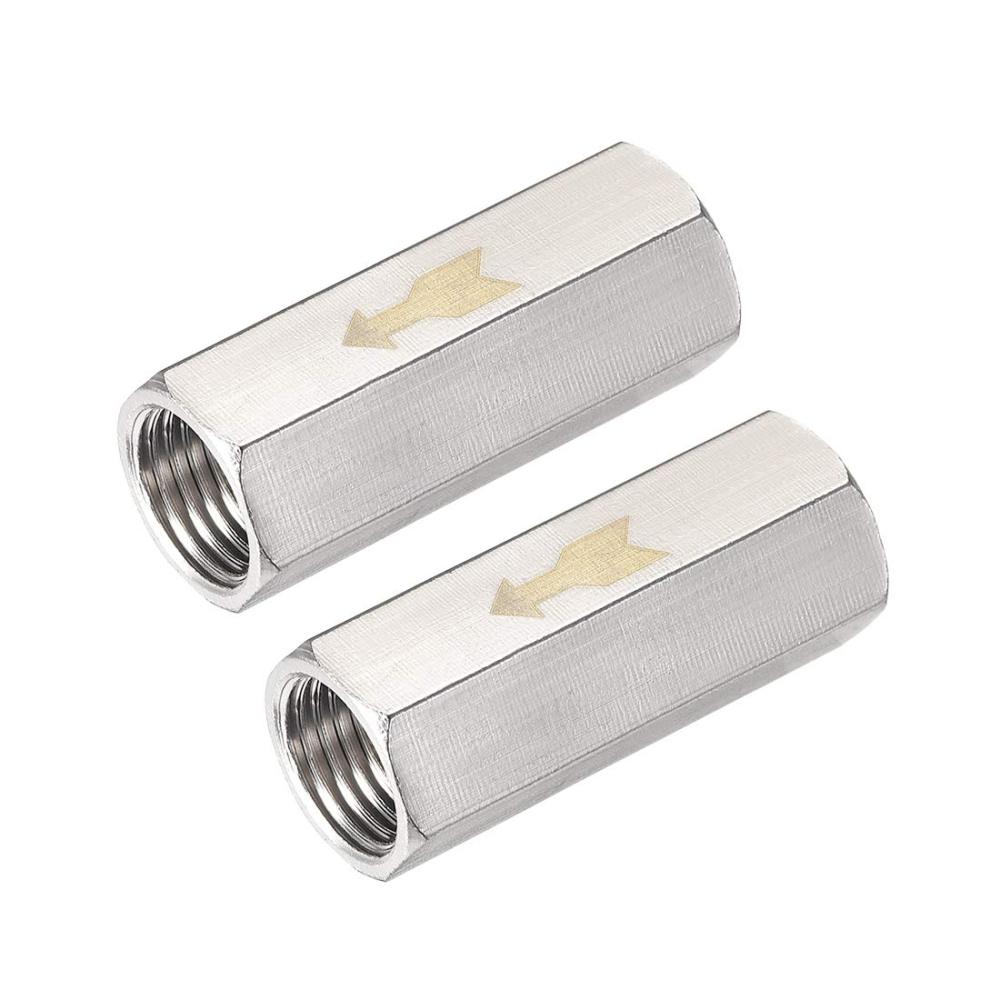

1. The check valves permit airflow in one direction but stops in the reverse direction.
2. The check valves work at the pressure of 0.1kgf/c㎡, keep 1.42 PSI in vacuum and connect at a low pressure.
3. Nickel-Plated brass body ensures anti-corrosion and anti-contamination.
